JBL Club 602C Club Series 6-1/2" Component Speaker System

JBL's patented Plus One™ woofer structure extends the surface area of the cone to give you a better low-frequency experience than other speakers this size. And an edge-driven silk dome tweeter expands the high-frequency range, so you'll hear musical details that you never heard from your old speakers. Included external crossovers optimize the performance of each speaker and provide two selectable tweeter levels. The Club 602C's low-impedance design safely draws more power from your car stereo to give your music extra punch, but you'll get even better results feeding these speakers power from an outboard amp.

Product Highlights:

What's in the box:
JBL Club 602C owner's manual

• 2 Woofers
• 2 Tweeters (each has attached 6" speaker leads)
• 2 Crossovers
• 2 Woofer grilles
• 2 Woofer mounting brackets
• 2 Tweeter flush-mount housings
• 2 Threaded flush-mount adapters
• 2 Plastic locking nuts
• 2 Tweeter surface-mount housings
• 2 Starfish tweeter mounts
• Eight 1-3/8" Screws
• Eight 1" Screws
• Eight 1/2" Screws
• 8 Speed clips
• Six 5/8" Flat head screws
• 2 Washers
• 2 Nuts
• 2 Adhesive backed foam gaskets
• Installation manual
• 2 JBL Stickers

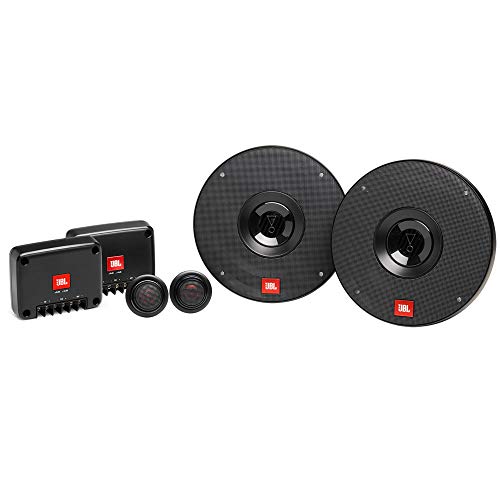

• Component speaker system includes two woofers, two tweeters, and two crossovers

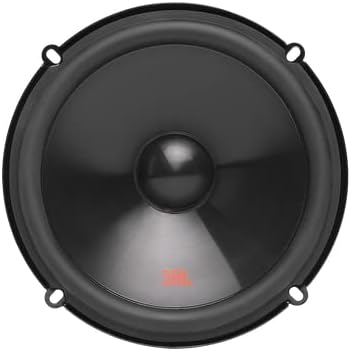

• 6-1/2" polypropylene Plus One™ woofer cone with rubber surround
• 3/4" edge-driven silk dome tweeter
• Handles up to 70 watts RMS (210 watts peak power)
• Frequency response: 55-20,000 Hz
• Impedance: 3 ohms
• Sensitivity: 92 dB at 2.83 volts
• Woofer top-mount depth: 2-1/16"

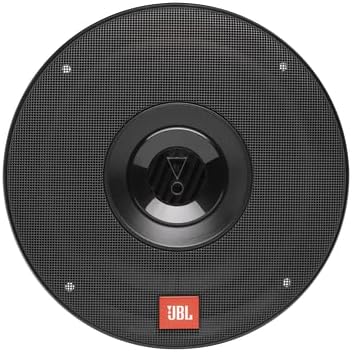

• Grilles included
• Warranty: 1 year
• Our 30-day money-back guarantee
• MFR # SPKCB602CAM

Plus One+ Woofer Cones: Each speaker uses a cone larger than other speakers of the same size. This is accomplished by using a unique basket design and hi-roll surround. The Plus One+ design offers greater bass output and an increase in efficiency.

Mounting: Without an adapter, the woofers fit standard 6¾" applications. Given their required cutout, they will also fit 6½" applications without an adapter, but new screw holes must be drilled. Using the included adapter brackets they can be mounted in a wide variety of 6½" and 6¾" applications, without any modification. Please enter your vehicle information to confirm fit.

High-Output Design: The 3Ω voice coil design compensates for the high in-line resistance of small gauge factory wiring, extracting more power from factory (or aftermarket) receivers. This results in clearer, richer sound for the listener.

I-Mount: The tweeters can be surface-mounted or flush-mounted with JBL's innovative I-Mount system:
Surface Mount: Surface mounting the tweeters involves screwing the surface-mount cup to the mounting location, then inserting and locking the tweeter into the cup.
Flush Mount: Flush mounting uses the threaded flush-mount housing and plastic locking nut. Once a cutout is made, the tweeter is installed in the flush-mount adapter, then into the flush mount housing and inserted into the hole. The large plastic locking nut is threaded onto the adapter (from behind the mounting surface) to hold the complete assembly securely in place. When flush mounted, the tweeters may be angled for optimum response and imaging.
